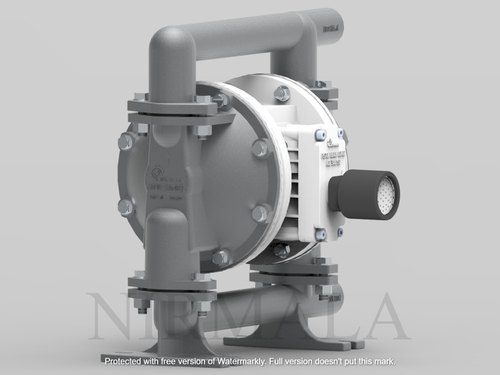

AOD-500 Polypropylene Pumps

Get a Price/Quote

MOQ : 1 Piece

AOD-500 Polypropylene Pumps Specification

Working Temperature
5C to 60C

Voltage
Not Applicable (Air Operated)

Max Suction
5 meters (Wet), 4 meters (Dry)

Control System
Manual/External Air Regulator

Discharge Pressure
Up to 7 Bar

Frequency
Not Applicable (air powered)

Caliber
2 inch

Features
Corrosion resistant, Dry-run capable, Easy to maintain, Leak-free, No electrical hazard

Noise Level
Below 70 dB

Speed
Variable (based on air supply)

Head Size
Up to 70 meters

Theory
Diaphragm Pump

Inlet/Outlet
2 inch BSP/F or Flanged

Mounting Type
Base Mounted

Flow Rate
500 LPM

Material
Polypropylene, SS316, PTFE Ball/Seats

Structure
Double Diaphragm

Power
Powered by Compressed Air

Standard
ISO 9001:2015 Certified Manufacturing

Fuel Type
Compressed Air

Pressure
Up to 7 Bar

Usage
Transfer of Chemicals, Solvents, Acids, Waste Water

Application
Chemical, Pharmaceutical, Effluent, Water Treatment, Food & Beverage

Suction Type
Self-priming, Dry-Run Capability

Seals Type
PTFE / EPDM / Viton

Priming
Self-Priming

Pump Type
Air Operated Double Diaphragm (AODD)

Capacity
500 LPM

Diaphragm Material Options
PTFE, Neoprene, Santoprene

Air Inlet Size
1/2 inch BSP

Max Solid Passage
Up to 6 mm

Weight
Approximately 28 kg

Port Orientation
Vertical/Horizontal (Adjustable)

Maximum Particle Size
6 mm

Ball and Seat Options
SS316, PTFE, EPDM

Body Finish
Smooth Moulded

AOD-500 Polypropylene Pumps Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

About AOD-500 Polypropylene Pumps

Specification

Minimum Order Quantity	1 Piece
Brand	NIRMALA
Model Name/Number	AOD-500 PP
Power Source	Pneumatic Air
Max Flow Rate	475 LPM
Head	Up to 50 Mtr
Color	White
Body Material	PP
Delivery Size	2inch
Size/Dimension	Suc X Dis : 2inch

Versatile Applications Across Industries

The AOD-500 Polypropylene Pump is utilized in chemical, pharmaceutical, effluent, water treatment, and food & beverage industries. Its corrosion-resistant materials and capability to handle aggressive fluids or solids up to 6 mm make it ideal for transferring a wide range of liquids, including chemicals, solvents, acids, and wastewater, effectively meeting industrial requirements.

Robust and Flexible Construction

Designed with smooth moulded polypropylene, SS316, and PTFE balls/seats, this pump withstands harsh chemicals and maintains structural integrity. Multiple diaphragm material options (PTFE, Neoprene, Santoprene) and seals (PTFE, EPDM, Viton) provide customizability for varying media and temperature ranges. Adjustable port orientation ensures easy installation in diverse system layouts.

Self-Priming and Reliable Operation

Featuring automatic self-priming up to 5 meters (wet) or 4 meters (dry), the AOD-500 eliminates priming hassle and ensures prompt startup. It is dry-run capable and operates at a noise level below 70 dB, making it reliable for continuous use in demanding or sensitive environments.

FAQs of AOD-500 Polypropylene Pumps:

Q: How does the AOD-500 Polypropylene Pump operate without electricity?

A: The AOD-500 uses compressed air as its primary power source, eliminating any electrical requirements. This air-operated design enhances safety in hazardous or flammable environments, making it ideal for applications where electrical pumps present risks.

Q: What types of fluids and solids can the AOD-500 handle, and up to what particle size?

A: This pump is engineered for transferring chemicals, solvents, acids, and wastewater containing solids up to 6 mm in size. Its robust diaphragm and material options ensure compatibility with aggressive or abrasive media in various industrial contexts.

Q: When should I choose between the different diaphragm and seal materials available?

A: Diaphragm options such as PTFE, Neoprene, and Santoprene, along with seals in PTFE, EPDM, or Viton, should be selected based on the fluids chemical nature, temperature requirements, and process conditions to optimize pump longevity and performance.

Q: Where can the AOD-500 pump be installed, given its port orientation and mounting options?

A: With adjustable port orientation (vertical or horizontal) and base-mounted design, the AOD-500 can be integrated into a variety of system setups, whether space constraints demand vertical alignment or process piping requires horizontal fitting.

Q: What is the process for maintaining the AOD-500 pump, and is it easy to service?

A: The AOD-500 is engineered for straightforward maintenance, featuring a leak-free structure and modular construction. Routine tasks such as diaphragm and seal replacement can be performed without complex tools, minimizing downtime.

Q: How does the self-priming feature benefit pump operation and installation?

A: Self-priming capability enables the AOD-500 to lift fluids from below the pump level (up to 5 meters wet, 4 meters dry), reducing the need for external priming devices and simplifying both installation and startup procedures.
